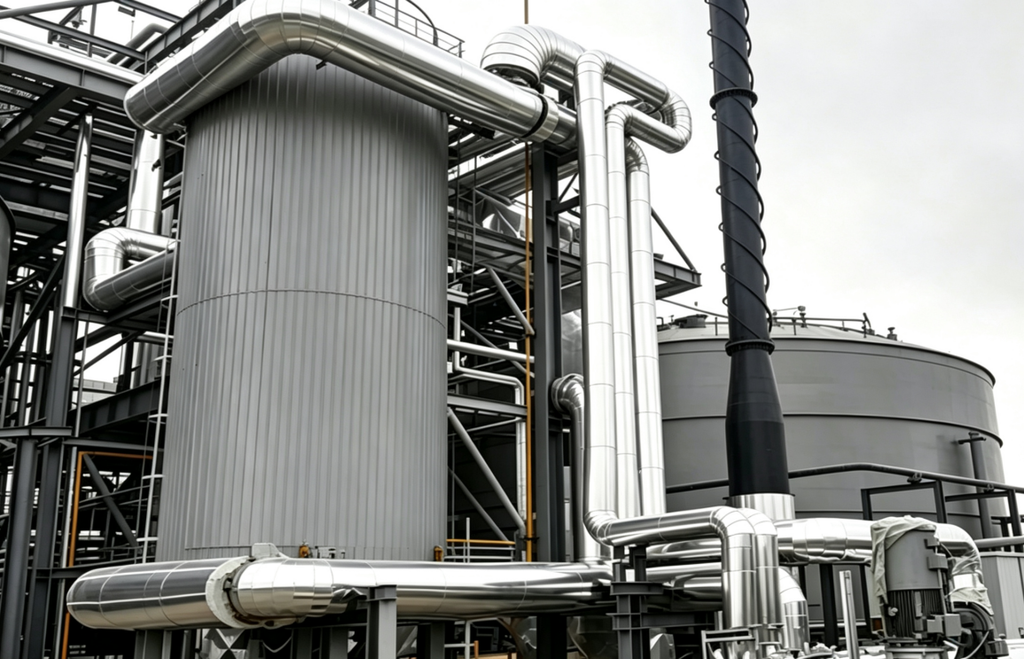

Molten Salt Heater

The Molten Salt Heater is a high-temperature industrial heating system that uses a mixture of potassium nitrate, sodium nitrite and sodium nitrate as the heat transfer medium.

By heating solid molten salt through electric heating or fuel combustion, the system converts the molten salt into a circulating heat transfer fluid at temperatures above 142°C. The molten salt then circulates through a closed-loop heating system to provide stable and efficient high-temperature process heat.

The Molten Salt Heater is designed for industrial applications requiring high-temperature heat transfer and can operate within a temperature range of 150–580°C.

Molten Salt Heating System Overview

Molten salt provides an efficient medium for high-temperature heat transfer. Unlike conventional water-based heating systems, molten salt systems can provide high-temperature process heat without relying on high-pressure steam.

The molten salt is heated to the required operating temperature and continuously circulated through the heating system and process equipment. After transferring heat to the process, the molten salt returns to the heater for reheating.

This creates a closed-loop heat transfer cycle with stable temperature control and efficient heat utilization.

Main Features

Operating temperature range of 150–580°C

Molten salt as the heat transfer medium

Closed-loop circulation system

Electric heating or fuel-fired heating available

Coal, oil and gas fuel options

High-temperature process heating

PLC automatic control system

Temperature control accuracy of up to ±1°C

Stable and uniform heat transfer

Suitable for continuous industrial operation

Customized heating solutions available
